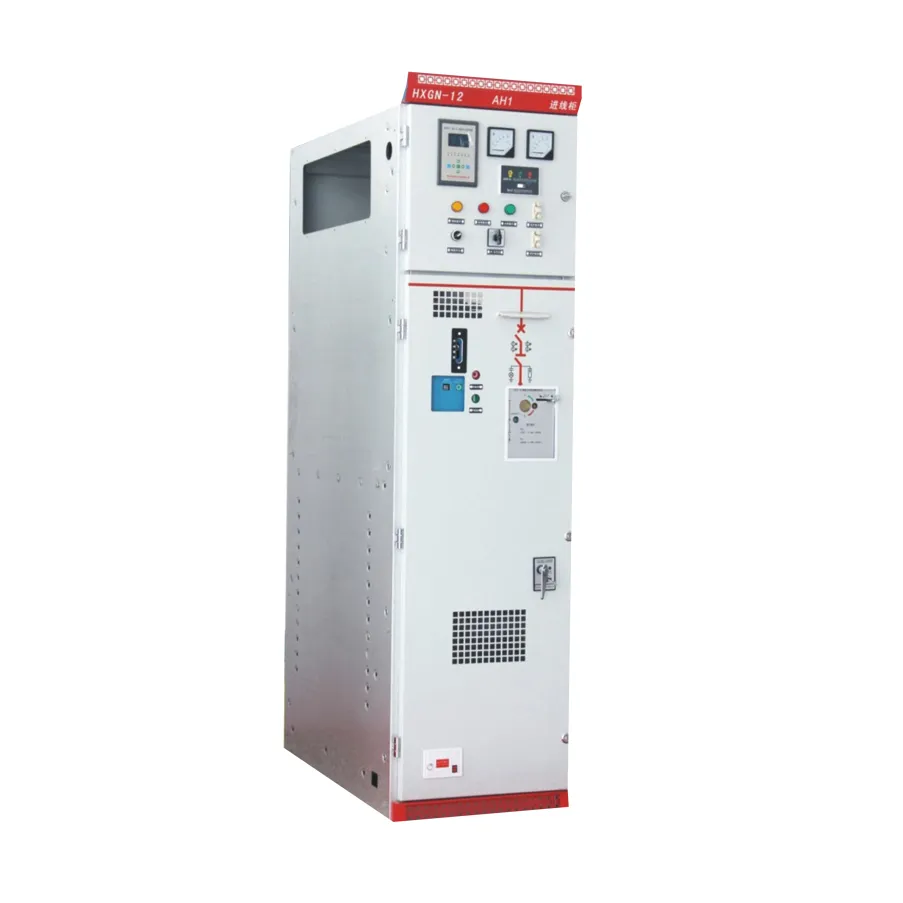

HXGN□-12(SF6) Unit type AC metal-enclosed ring main unit(hereafter refer to as ring net cabinet) is a new generation of high-pressure electric appliance product designed and developed independently by our own company according to the requirement of the domestic agricultural electricity and the city net transformation after introduction of overseas advanced technology. Each technical performance index completely reaches the IEC298 and GB3906 standard.

The loop-net cabinet s main switch, the operating mechanism and the components is made of the  Corporation original piece or the SFL-12/24 switch equipment imported overseas and ass-embled at home. We can also install the Corporation original piece of HAD/US type SF according to the request of users. The circuit breaker or the VD4-Svacuum circuit-breaker divide into two kinds: be operated manually and electrically according to the operating mode.

The cabinet body is riveted after processed by numerical control machine tool with reliable mechanical interlocking and the misoperating prevention function. The protection grade reaches IP3X.This product has the remarkable characteristics such as the small volume, light weight, artistic appearance, simple operation, long life, high parameter with no pollution and little maintenance.

Use environmental conditions

1.The altitude should not exceed 2000m.

2.Surrounding air temperature: -25℃ ~+40℃

3.Relative temperature: the daily average value is not higher than 95%, the the monthly average value is nothigher than 90%

4.Surrounding air without caustic gas or ignitable gas, steam and other obvious pollution

5.Without fierce vibration

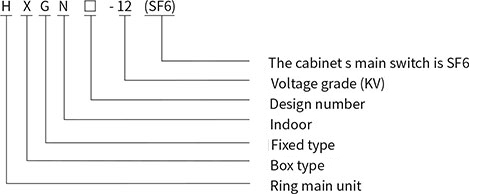

Model and meaning

Use

HXGN□-12 (SF6) unit type exchange metal ring- net switching equipment, is suitable to exchange 50Hz、12kV , searving as device of receiving and distribution of electrical energy.

The main technical parameters

Ring cabinet installation

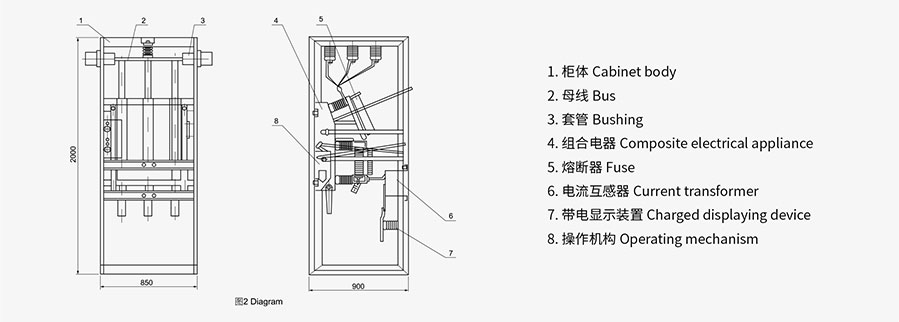

Combination electrical cabinet

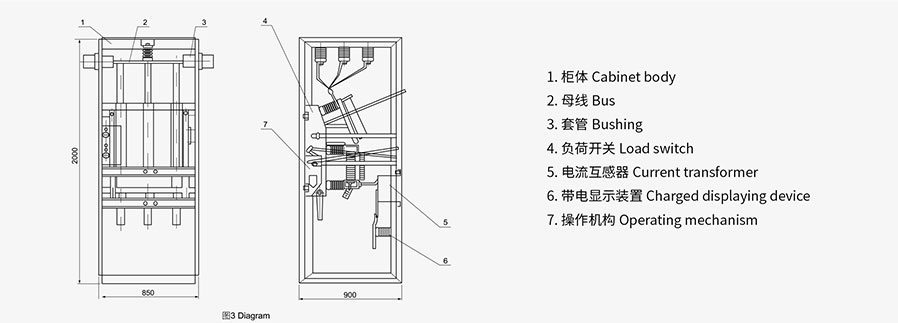

Load switch cabinet
